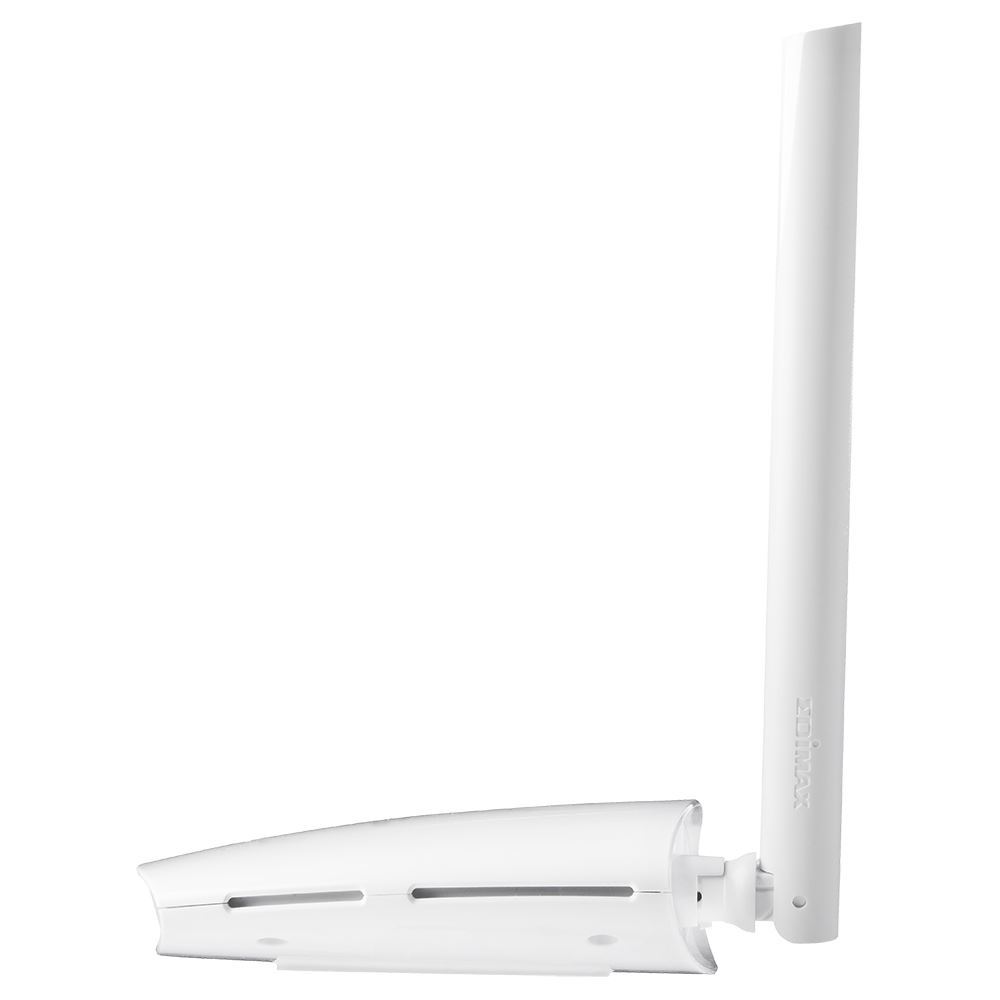

AC1200 Gigabit Dual-Band Access Point w/ USB Port

Description

Modern homes and businesses need high-performance, reliable and secure WiFi. The EW-7478APC features the latest 11ac standard to upgrade your existing 11n to better, faster WiFi and a USB port for file & printer-sharing on your network. Attach a USB hard-drive for central NAS (Network Attached Storage) access on any device and stream content at lightning fast lag-free 11ac speeds. It’s a 5-in-1 device that can function as an access point, range extender, WiFi router, WiFi bridge or WISP and you can easily switch mode for your network environment with the smart iQ Setup wizard. FEATURE: AC1200 High-Speed Concurrent Dual-Band: Max speeds up to 300Mbps (2.4GHz) and 867Mbps (5GHz) with 802.11ac WiFi standard and backward compatible with 802.11a/b/g/n standards. Multi-Function USB Port: Storage & FTP file or printer sharing as your own private, secure cloud. Multiple SSIDs with VLAN: Supports up to 8 SSIDs (2.4GHz x 4 & 5GHz x 4) and provides security to protect confidential or critical network resources (Access point mode only). Plug and Play: Zero configuration setup with no CD required. Just connect the EW-7478APC to your router with an Ethernet cable. Easy 11ac Upgrade: Upgrade your single-band 2.4GHz WiFi to 11ac dual-band WiFi for better coverage and faster WiFi speed with zero configuration. 5 Modes in 1: Access point, range extender, WiFi router, WiFi bridge and WISP. Guest Network: Provides secure, private connectivity while isolating guests from your primary network (WiFi router/range extender/WISP mode only). iQoS Bandwidth Management: Efficient Internet bandwidth management VPN (Virtual Private Network): Access secure remote networks from anywhere, protect privacy on public WiFi and bypass Internet censorship (WiFi router mode only). AC1200 High-Speed WiFiSupports the IEEE 802.11ac wireless standard, meaning much higher data rates on the 5GHz band. With 300Mbps speeds at 2.4GHz and 867Mbps at 5GHz, the EW-7478APC is ideal for HD video streaming and large file transfers. Concurrent Dual-Band WiFi ConnectivityThe Edimax EW-7478APC router provides simultaneous 2.4GHz (802.11n) and 5GHz (802.11ac) wireless network connectivity for maximum flexibility of use. Multi-Function USB PortConnect a USB hard-drive and enjoy your own private cloud storage. Keep content on your central storage and access it from any device on your network. Including movie and TV streaming to PCs or smart TVs, or regular backups of vital data. With the built-in VPN function, you can even access your network remotely when you’re away from home. It can also be used with an FTP server or printer, so any devices on your network can print over your WiFi. Multi-SSID with VLAN Support*Multi-SSID enables users to configure up to eight separate SSIDs (2.4GHz x 4 and 5GHz x 4) in order to group and manage users according to your requirements. In addition, each SSID can be assigned a different VLAN ID, so users with multiple VLANs can manage the network access level of each SSID – ensuring security and protecting confidential or critical network resources.(*Access point mode only) Plug & PlayJust connect the EW-7478APC to your router with an Ethernet (RJ45) cable. There’s zero configuration and no CD required. (*Access point mode only.) 5-in-1 Access Point, Range Extender, WiFi Router, Wireless Bridge and WISPThe EW-7478APC can work as an access point, range extender, WiFi router, WiFi bridge or WISP. Just configure the mode you need for your network environment using the smart iQ Setup wizard.

Specifications

HARDWARE Port 1x RJ45 10/100/1000Mbps WAN port 4x RJ45 10/100/1000Mbps LAN port 2x USB 2.0 port Button WPS/Reset buttons LED Indicator Power, Internet, WLAN, USB Antenna 2x Dual-band antennas Memory 8MB NOR Flash 64MB RAM Power Adapter DC 12V, 1.5A Dimensions (W x D x H) 190.2mm x 172mm x 42mm Weight 322g WIRELESS Standards 802.11 a/b/g/n/ac Frequency 5GHz and 2.4GHz concurrent dual-band Maximum Data Speed 5GHz: 867Mbps 2.4GHz: 300Mbps Receive Sensitivity 5GHz: 11a(6Mbps): ‐90±2dBm 11a(54Mbps): ‐71±2dBm 11n(20MHz, MCS7): ‐69±2dBm 11n(40MHz, MCS7): ‐65±2dBm 11ac(80MHz, MCS9): -55±2dBm 2.4GHz: 11b(1Mbps): ‐91±2dBm 11b(11Mbps): ‐87±2dBm 11g (54Mbps): ‐71±2dBm 11n(20MHz, MCS7): ‐68±2dBm 11n(40MHz, MCS7): ‐65±2dBm Output Power 5GHz: 11a(6Mbps): 18±1.5dBm 11a(54Mbps): 14±1.5dBm 11n(20MHz, MCS7): 13±1.5dBm 11n(40MHz, MCS7): 13±1.5dBm 11ac(80MHz, MCS9): 13±1.5dBm 2.4GHz: 11b (1Mbps): 18±1.5dBm 11b (11Mbps): 16±1.5dBm 11g (54Mbps): 14±1.5dBm 11n (20MHz, MCS7): 13±1.5dBm 11n (40MHz, MCS7): 13±1.5dBm Guest Network 5GHz guest network × 1 2.4GHz guest network × 1 Security 64/128-bit WEP, WPA and WPA2 security Hardware & software WPS configuration QoS for critical operations, SPI anti-DoS firewall SOFTWARE FEATURES Management Multi-language user interface Remote management, access control System status and security log Firmware upgradable (Fault tolerance firmware upgrade) Smart iQ Setup, no CD required WAN Protocol: PPPoE, Static IP, Dynamic IP, PPTP and L2TP Supports WISP connection mode Supports RJ45 cable/xDSL modem iQoS Intelligent Quality of Service for smart bandwidth management, WMM VPN Pass-Through IPSec, PPTP Port Forwarding Virtual Server, IGMP Proxy, UPnP, DMZ DHCP Server, Client, DHCP Client List, Address Reservation Dynamic DNS DynDns, DHS, Zoneedit Access Control IP/Mac Filter Firewall Security DoS, SPI Firewall, IP Address Filter Protocols Supports IPv4 Guest Network 5GHz guest network x 1, 2.4GHz guest network x 1 (WiFi router/range extender/WISP mode only) SSID Up to 10x SSIDs (2.4GHz x 5 and 5GHz x 5) an access point (Each band with 1 main SSID and 4 multiple SSIDs) Up to 4x SSIDs (2.4GHz x 2 and 5GHz x 2) in WiFi router/range extender/WISP mode (Each band with 1 main SSID and 1 guest SSID) Schedule SSID schedule control Operation Mode Access point, range extender, WiFi router, WiFi bridge or WISP OTHERS Certification CE, FCC, RoHS Environmental Condition Operating humidity: 10%~90% (non-condensing) Operating temperature: 32°F – 104°F (0°C – 40°C) System Requirement Cable or xDSL Internet connection (RJ45 cable modem or RJ45 ADSL modem) Computer (with Fast Ethernet adapter or wireless adapter) running Windows, Mac OS or Linux Smartphone, tablet or laptop running iOS 4 or Android 4 and above Web browser (Internet Explorer, Google Chrome, Firefox, Opera or Safari) Package Content EW-7478APC Access point Quick installation guide CD-ROM (including setup wizard, multi-language quick installation guide and user manual) Power adapter Ethernet cable

Model: EW-7478APC
