D-Tech DH-IPC-WL46A

Description

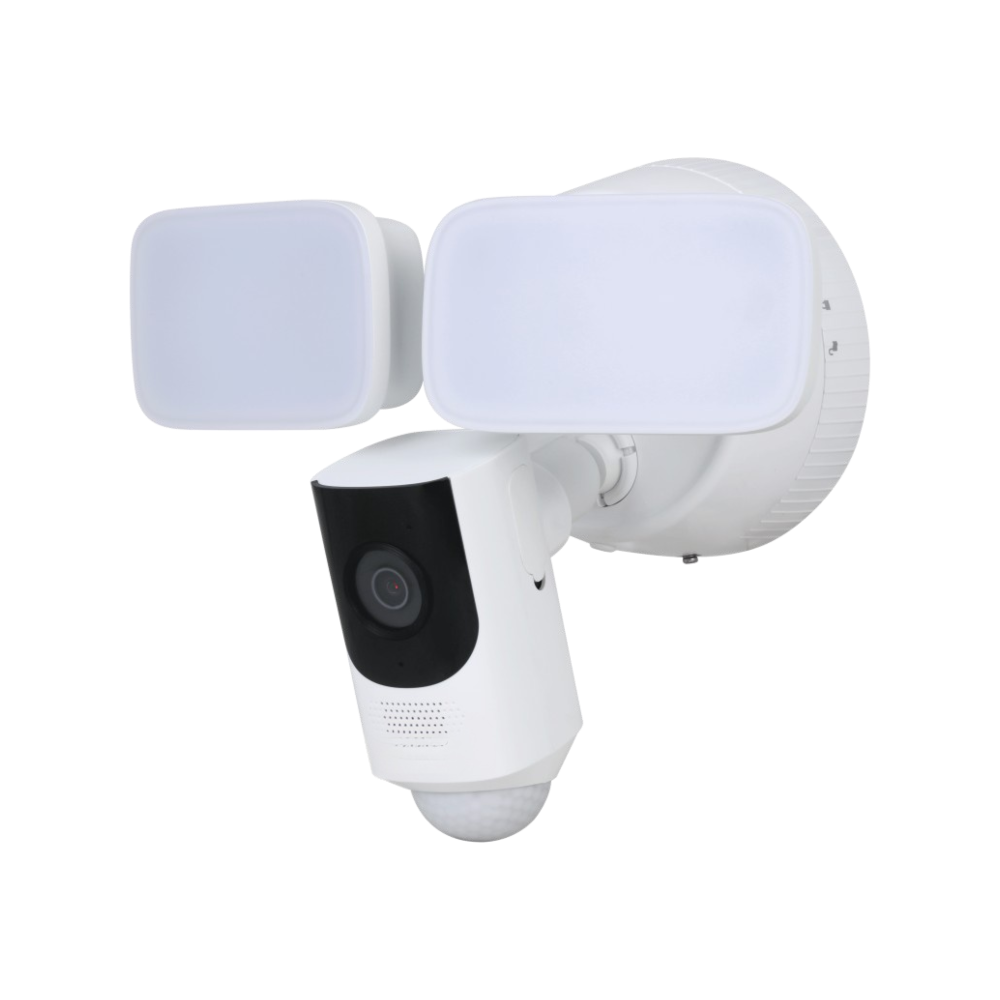

D-Tech DH-IPC-WL46A Dual-Band Wireless 230VAC-Powered FloodLight H265 4MP IP IR (10m) + Warm-White-Light (30m) Weatherproof FloodLight Camera with 2.8mm Fixed Lens – Built-in Audio Mic + Speaker + 100dB Siren – Human / Vehicle Detection Key Features :- 4MP 1/3″ CMOS image sensor, low luminance, and high definition image Outputs max. 4MP (2560 × 1440) @ 25 fps/30 fps H.265 codec, high compression rate, ultra-low bit rate SMART H.264+ / H.265+, flexible coding, applicable to various bandwidth and storage environments Built-in microphone and speaker for real-time communication Active alarm with built-in 110dB Siren The built-in dual floodlights can switch between warm and cool color temperature and have 4 floodlights modes Detects humans, vehicles and animals to reduce the occurrence of false alarms SMART H.264+ / H.265+, flexible coding, applicable to various bandwidth and storage environments Dual-band 2.4GHz and 5GHz WiFi options, IEEE802.11a/b/g/n/ac Supports max. 256GB Micro SD card and NVR storage 100–240 VAC power supply, easy for installation IP65 Protection

Specifications

Camera Image Sensor 1/3″ CMOS Max. Resolution 2560 (H) × 1440 (V) ROM 128 MB RAM 512 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.005 lux@F1.6 (Color,30 IRE) 0.0005 lux@F1.6 (B/W,30 IRE) 0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance 10 m (32.81 ft) (IR); 30 m (98.43 ft) (Floodlight) Illuminator On/Off Control Auto; Manual Illuminator Number 1 (IR LED); 2 (Floodlight, color can be switched between warm and cool) Floodlight Brightness 1500-2400 lm Floodlight Color Temperature 3000K±200K (warm); 6000K±300K (cool) Floodlight Modes Motion Activation Manual Schedule PIR Activation Pan/Tilt/Rotation Range Camera: Pan: –85° to +85° Tilt: –90° to +45° Rotation: 0° to +360° Floodlight: Tilt: –90° to +90° Rotation: –145° to +145° PIR Sensor Distance 10 m (the height of the device is 3 m, placed at an angle of 30° from the horizontal) PIR Detection Range 270° Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm Max. Aperture F1.6 Field of View H: 98°; V: 55°; D: 115° Iris Control Fixed Close Focus Distance 1.0 m (3.28 ft) DORI Distance Detect Observe Recognize Identify 61.2 m (200.79 ft) 24.5 m (80.38 ft) 12.2 m (40.03 ft) 6.1 m (20.01 ft) Video Video Compression H.264B; H.264; H.264H; H.265; MJPEG Smart Codec Smart H.265+; Smart H.264+ Video Frame Rate Main stream: 2560 × 1440@(1–25 fps) 2560 × 1440@(1–30 fps) Sub stream 1: 704 × 576@(1–25 fps) 704 × 480@(1–30 fps) Sub stream 2: 640 × 480@(1 fps–25 fps) 640 × 480@(1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 3 streams Resolution 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 1M (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H264: 32 kbps–8192 kbps; H265: 32 kbps–8192 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR DWDR White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Auto Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/180° Mirror Yes Privacy Masking Yes Audio Built-in MIC Yes Built-in Speaker Yes Audio Compression G.711a; G.711Mu; G.726; PCM Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; security exception; motion detection; video tampering; sence changing; SMD (human, animal and vehicle); audio detection; intensity change Network Wi-Fi IEEE802.11a/b/g/n/ac 2.4–2.4835GHz & 5.18–5.85GHz SDK and API Yes Cyber Security Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade Network Protocol IPV4; IPV6; ARP&Ping; TCP; UDP; HTTP; RTSP; HTTPS; DDNS; Email; SNMP; Multicast; Auto Registration; Wireless Qos; Wi-Fi setting; hotspot scanning; 802.1x; UPnP status; Bonjour; UPnP; device discovery Interoperability ONVIF; CGI; P2P; RTMP User/Host 6 (Total bandwidth: 36 M) Storage Micro SD card (support max. 256 GB); FTP; SFTP; NAS Browser IE; Chrome; Firefox Management Software DMSS Mobile Client iOS; Android Certification Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C Power Power Supply 100–240 VAC Power Consumption Basic: 5.2 W (100–240 VAC ) Max. (Illuminator+IPC): 48.3 W (100–240 VAC ) Environment Operating Temperature –20 °C to +50 °C (–4 °F to +122 °F) Operating Humidity ≤ 95% Storage Temperature –20 °C to +50 °C (–4 °F to +122 °F) Protection IP65 Structure Casing Metal + Plastic Product Dimensions 270.7 mm × 217.2 mm × 195.6 mm (10.66″ × 8.55″ × 7.70″) (L × W × H) Net Weight 1.40 kg (3.08 lb) Gross Weight 1.88 kg (4.14 lb)

Model: DH-IPC-WL46A
