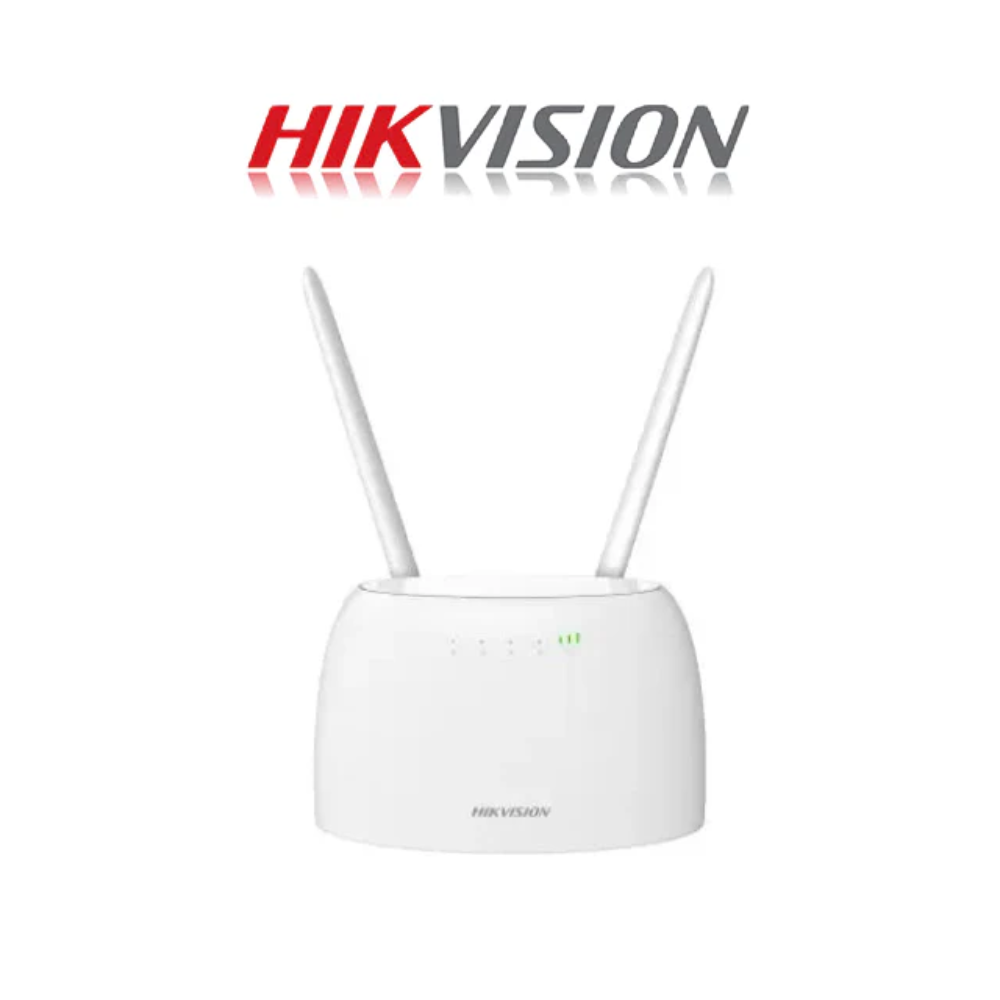

Hikvision DS-3WR4G12C

Description

Hikvision DS-3WR4G12C AC1200 Dual-Band WiFi 4G LTE Wireless Router – Indoor Rated Key Features :- Wireless Standards: IEEE 802.11ac/n/g/b/a Frequency Bands: 2.4GHz and 5GHz Wi-Fi Speed: Up to 1200Mbps (300Mbps on 2.4GHz + 867Mbps on 5GHz) 4G LTE: Supports major 4G LTE bands for high-speed mobile internet SIM Card Slot: Yes, for instant mobile network access Antenna: External antennas for enhanced signal strength and coverage Ports: 4x Gigabit Ethernet ports for wired connections Security: WPA/WPA2 encryption, firewall protection, and more Management: Web interface Power Supply: 12V/1.5A Hikvision Product-Link Hikvision Networking Products Brochure

Specifications

General Product Dimensions (W × H × D): 233.9mm × 151.4mm × 40.3mm Package Dimensions (W × H × D): 405mm × 307mm × 80mm Net Weight: 0.560kg Packing List: 1 * 4G LTE Router, 1 * Power Adapter, 2 * Detachable Antennas, 1 * Ethernet Cable, 1 * SIM Card Adapter, 1 * Quick Start Guide, 1 * Regulatory Compliance and Safety Information Packing Method: Single pack Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) Working Humidity: 10% to 90% RH non-condensing Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) Storage Humidity: 5% to 90% RH non-condensing Installation Mode: Desktop installation Max. Power Consumption: ≤ 9 W Gross Weight: 0.620 kg Wireless Parameter Max. Transmission Rate of Air Interface: ≤ 1167 Mbps, 2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps Wireless Standard: IEEE 802.11/a/n/ac wave 2 @ 5GHz, IEEE 802.11b/g/n @ 2.4GHz Working Frequency Band: 2.4 GHz，5 GHz Transmitting Power: 16dBm @ 2.4G-mcs7、17dBm @ 5G-mcs9 Wireless Performance: 2 * 2 MIMO supported Receiving Sensitivity: -58 ± 2 dB@AC80 -MCS9, -84 ± 2 dB@AC80 -MCS0 Antenna: 2 * high gain antennas Network Type: LTE CAT.4 Mobile Standards: FDD LTE, TDD-LTE,WCDMA Mobile Bands: 4G FDD LTE: B1/B3/B7/B8/B20/B28AB; 4G TDD-LTE: B38/B40/B41; 3G WCDMA: B1/B8 4G Speed: DL: 150 Mbps, Upload: 50 Mbps Hardware Parameter Network Interface: 2 × RJ45, 10/100 Mbps auto-negotiation LED Indicator: power LED*1、internet LED*1、WiFi LED*1、RJ45 LED*1、LTE LED*3 ResetReset button: *1 Power Supply Method: 9 VDC, 1 A power adapter power supply Power Specifications: 9 VDC, 1 A Software Function Application Function: 3G/4G Route Mode, Wireless Router Mode, and AP Mode supported DHCP Server supporte Guest Network Configuration supported Signal Adjustment supported WiFi Schedule supported Security Mode: WPA-PSK, WPA2-PSK, WPA and WPA2 supported Security Mechanism: Hide SSID Management Method: Web Upgrade: Web System Log: System log

Model: DS-3WR4G12C
