TP-Link VIGI 4G Solar Starter Kit

Description

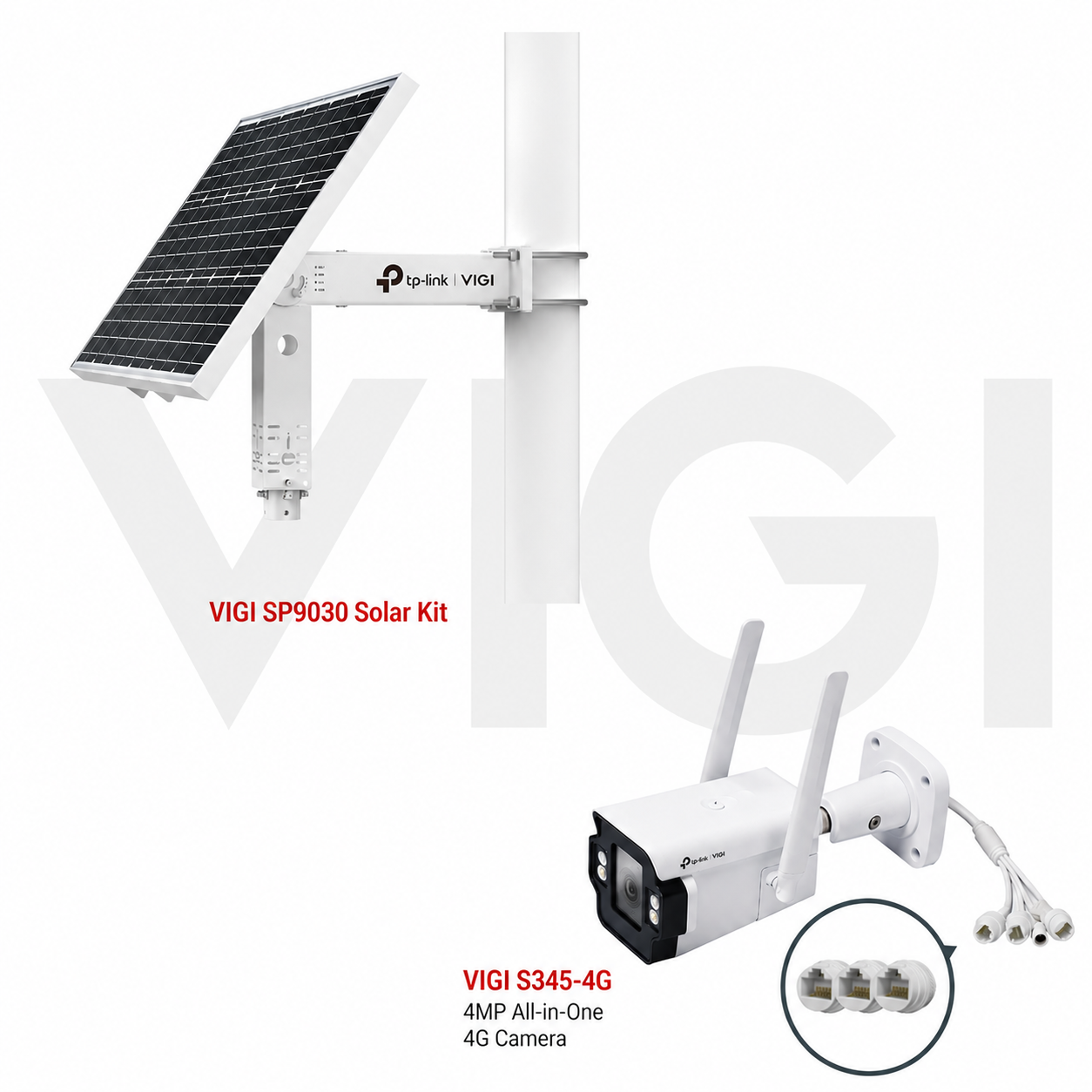

TP-Link VIGI 4G Solar Starter Kit – Includes 1 * SP9030 Solar Set + 1 * S345-4G 4MP LTE All-In-One Bullet Camera – Smart IOT MPPT Controller Included – Weatherproof – Remote Management* Key Features :- SP9030 90W Photovoltaic Panel and 31.2Ah/10.8V Lithium Battery 3 * DC Voltage Output Ports Modular Design 5°/15°/25°/35°/45°/55° Adjustable Angles Intelligent Auxiliary Heating Technology Maximum Power Point Tracking (MPPT) Charging Controller IP66 Weatherproof Remote Management* and Simple Installation Recommendation -> For long-term surface protection, we recommend applying a natural lanolin-based protective coating, such as WD-40 Specialist Lanolin, after installation and as part of routine maintenance. This will help minimise rust and corrosion while extending the lifespan of the cabinet and mounting accessories. Note* – Oversize overweight item, will incur extra freight charges S345-4G 4MP Super-High Definition and 24h Full-Colour 4G Mobile Networking*1 3 LAN Ports for Downstream Devices Human & Vehicle Classification Smart Detection Smart Video Enhancement Technology Active Defense and Two-Way Audio H.265+ Compression Technology IP66 Weatherproof VIGI Solar Power System Solution Page VIGI Solar Solutions Brochure 1 VIGI Solar Solutions Brochure 2 TP-Link VIGI Product-Page TP-Link VIGI Brochure TP-Link Press Article for Solar Solutions

Specifications

Solar Panel (Photovoltaic Panel) Power 90 W Voltage 18 V Dimensions (L x W x H) 998×516×30 mm (39.3×20.3×1.2 in) Battery Type Lithium Intelligent Auxiliary Heat Yes Battery Capacity 31.2 Ah Voltage 10.8 V Max. Output Voltage 12.6 V Life More than 500 cycles Dimension 250×74×74 mm (9.8×2.9×2.9 in) Charging Condition • 0°C~45°C • -30°C~45°C (With intelligent auxiliary heating) Discharging Condition • -20°C~60°C • -30°C~60°C (With intelligent auxiliary heating) Angle Adjustment (Manual) Range 5°/15°/25°/35°/45°/55° HARDWARE Interface • 1× 10/100 Mbps RJ45 • 1× Photovoltaic Panel Connector • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) Indicator LED • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator) • Color: Blue SOFTWARE FEATURES Load Control Yes High and Low Temperature Protection Yes Overdischarge Protection Yes Power Consumption Statistics Yes Displays Real-time Load Status Yes Battery Level Display Yes Time Zone Selection Yes Region Selection Yes Schedule Saving Yes Firmware Remote Update Yes Remote Reboot Yes Local LAN Management Yes Smart Charging Control -30°C~5°C Account Management Yes Web Management Yes Remote Reset Yes Remote Message Push Yes OTHERS Certification • CB, PSE (Battery) • CE, FCC, VCCI, IC, IP66 Package Content • VIGI SP9030 • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories Box Dimensions (W X D X H) 1110×615×225 mm (43.7×24.2×8.9 in) Weight • Product weight: 15 kg • Package weight: 17.5 kg Environment • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) • Operating Humidity: 10%~90%RH, Non-condensing For additional version information, please go to the support page. *A cycle represents one full charge and discharge. Based on 30Ah capacity with VIGI C540-4G, 500 cycles approximate a 10-year lifespan. **The actual shipped product doesn’t include camera and EAP equipment.

Model: VIGI 4G Solar Starter Kit
